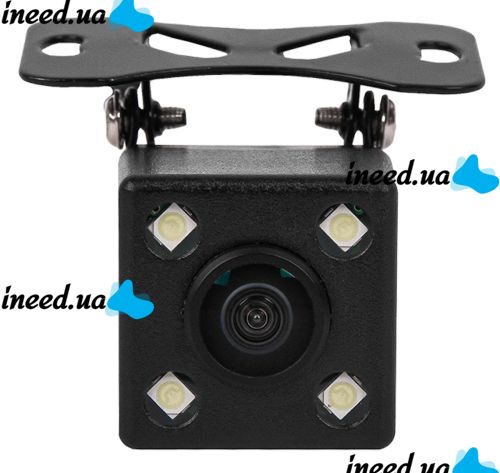

Universal car rear view Camera LM-05 for cars, buses, trucks LM-700T (101), Rear view camera with backlight

The universal rear view camera for LM-05 cars is a reliable assistant when parking a car in reverse, perfect for both an experienced driver and a beginner. Such a rear-view camera will make driving even more comfortable and safe.

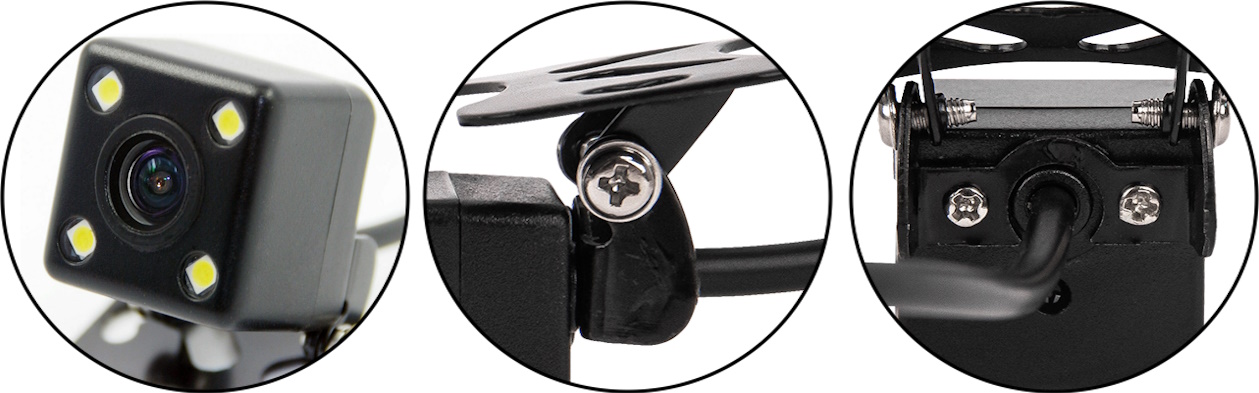

The LM-05 rear view camera is designed for universal installation on any car, installation is carried out by attaching the camera to screws. The LM-05 is connected to any image playback device, for example, a GPS navigator, an external monitor, a standard radio, a portable TV, a DVD player, a DVR to monitor and record events occurring behind the car. This camera has a sealed housing and built-in LED backlight, which allows you to park with the camera even at night.

Advantages:

• It is protected from dust and water;
• Facilitates the parking process;
• Provides a wide viewing angle;
• Clear image in poor light;
• It can be installed in any car.

Features:

• Type: Rear View Camera;
• Operating power (DCV): 12;
• Current consumption: 90mA max;
• Video Resolution: 520TV Lines;
• Color image sensor: 1/3" Sony CCD ;
• TV system: NTSC /PAL;
• Minimum illumination. < 0,1;
• Built-in night vision of 4 LED diodes;
• White balance: auto;
• The number of effective pixels: 728x512;
• Electronic shutter: 1/60 (NTSC) -1 / 10000 sec, 1/50 (PAL) -1 / 10000 sec;
• S/N ratio: > 48dB;
• Wide angle lens: 170 degrees;
• Waterproof class: IP 68;
• Operating temperature: -20 ° C + 80 ° C RH95%;
• Usage temperature: -30C + 80C;
• Camera size: 22x22 mm, H=32mm;
• Video camera cable length: 0.55 m;
• Video cable length: 5.5 m;
• Length of the charging cable: 1.3 m;
• Weight: 190 g.

Package contents:

1. Camera.
2. The power cable.
3. Video cable.
4. Package.
