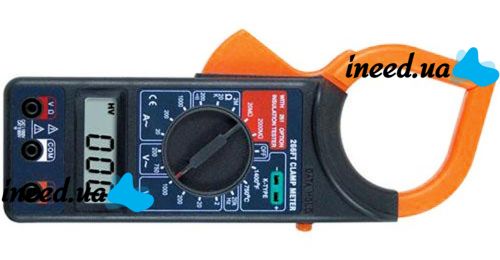

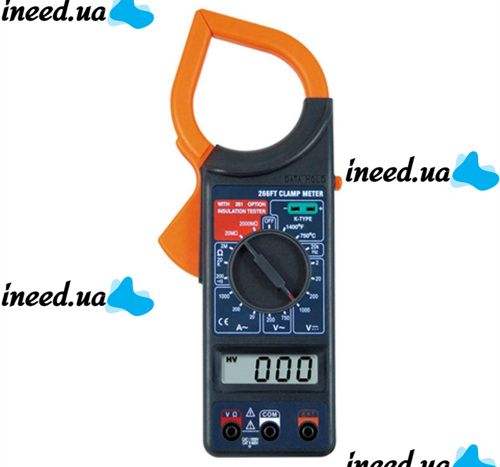

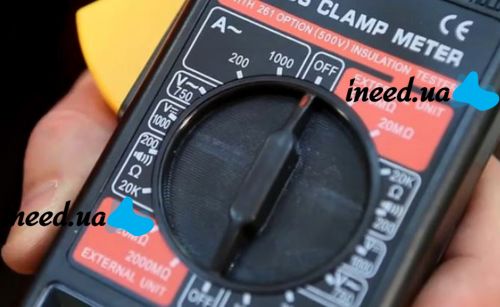

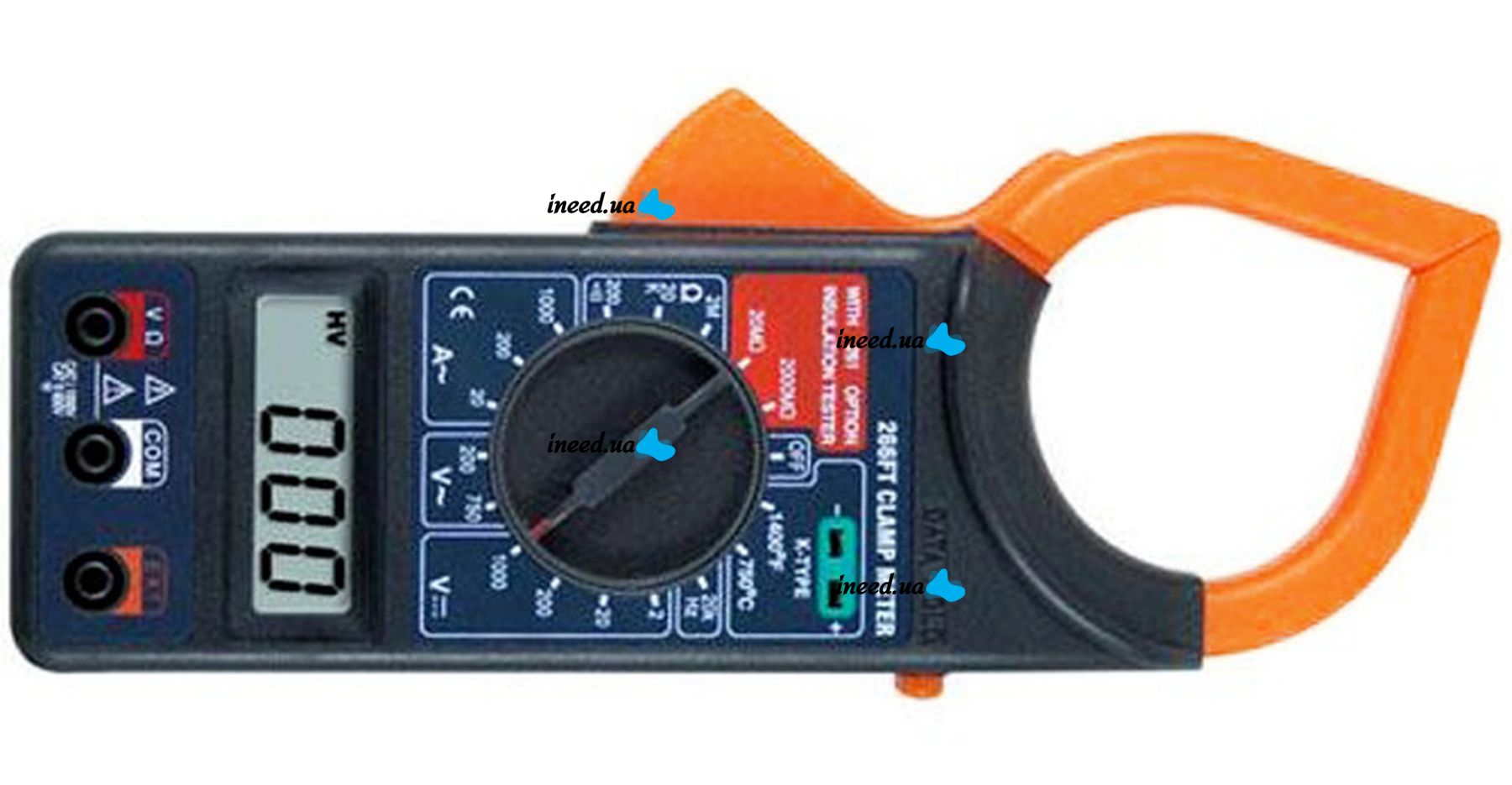

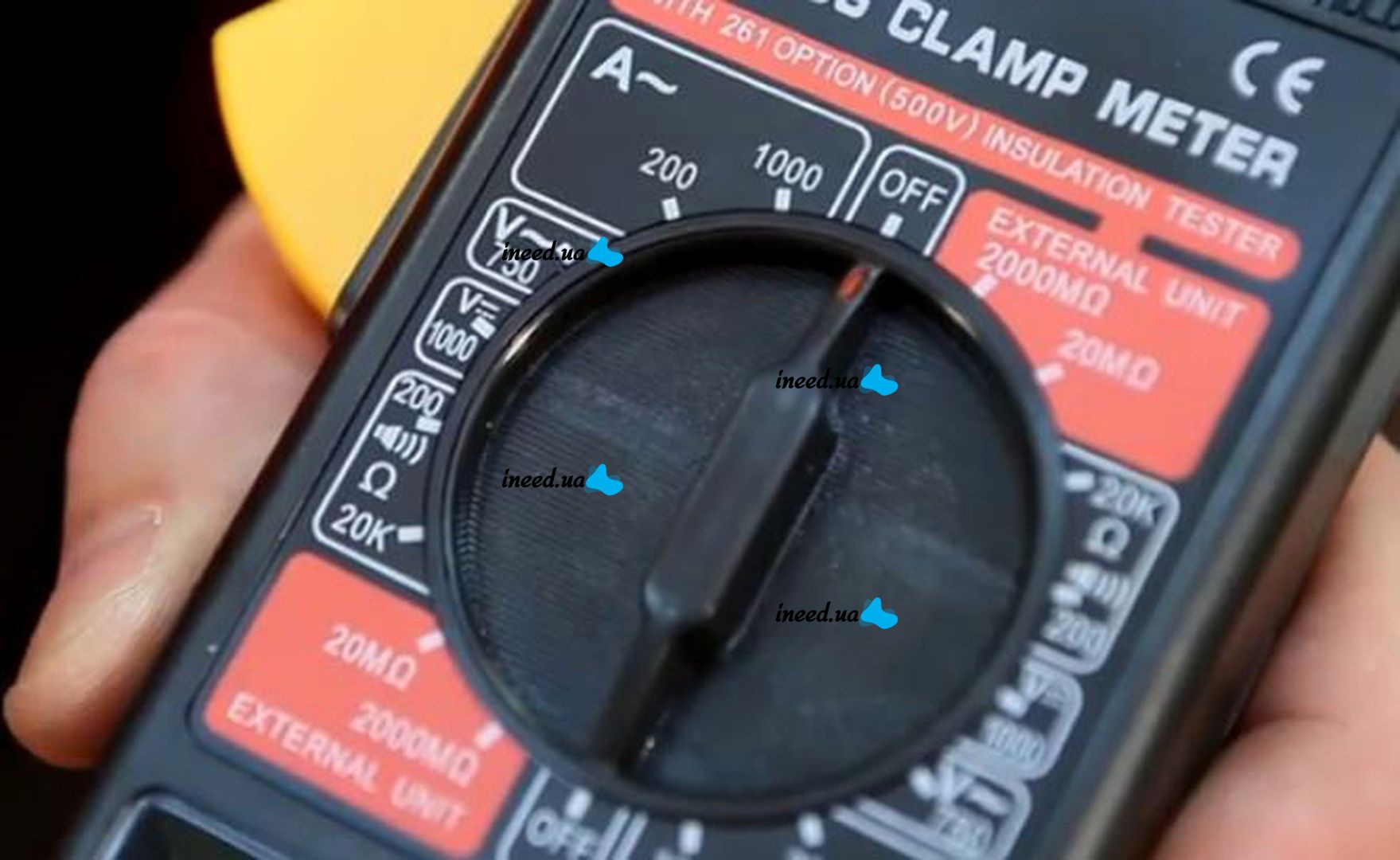

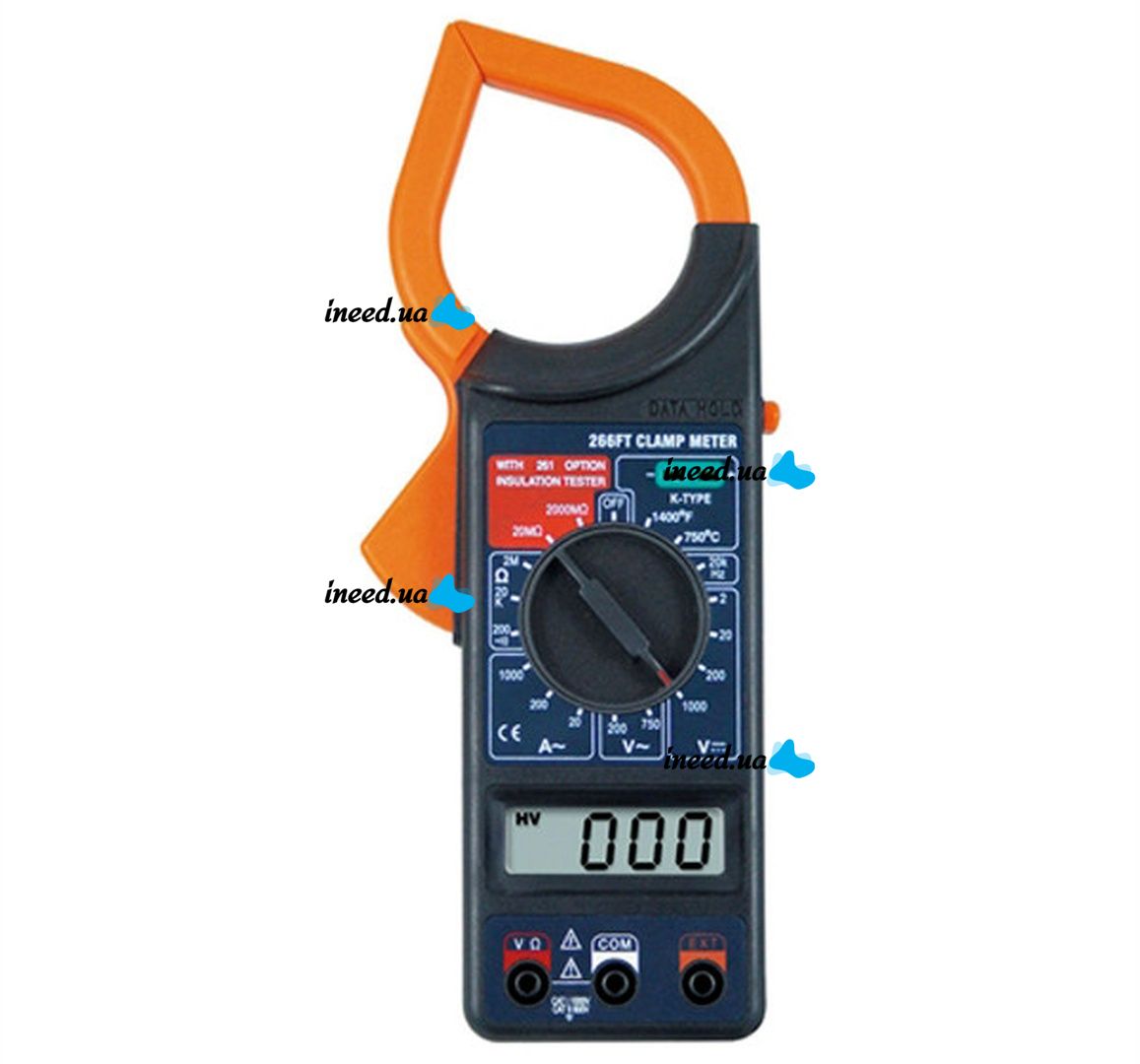

Tester multimeter clamp Digital 266FT

Digital clamp meters are multifunctional measuring devices. They are designed for measuring electrical quantities during installation and maintenance of electrical installations, as well as in everyday life.

Current measuring clamps perform the following functions:

1. measuring the effective value of AC voltage up to 750V in the frequency range of 50-750Hz with an error of ±1%;
2. measurement of DC voltage up to 1000V with an error of no more than ±0.8%;
3. measurement of alternating current (effective value) up to 1000A with an error not more than ±3%;
4. DC resistance measurement up to 2 mOhm with an error of ±1%;
5. temperature measurement within the range of 0°C.750°C with a remote sensor and an error of no more than ±1.5% (model 266C);
6. insulation resistance test (with additional attachment) up to 2 000mOhm with an error not more than ±5% ;
7. measurement of signal frequency (sound spectrum) in the range up to 20 kHz with an error not more than ±3%;
8. battery discharge level indication;
9. overload protection.

Characteristics

• Scale digit capacity 1999 counts
• LCD display 3 1/2 digits
• Manual selection of measuring range
• Tapping
• Hold function
• Frequency measurement
• Tapping connections, diode testing
• Dimensions: 37 x 90 x 230 mm.
