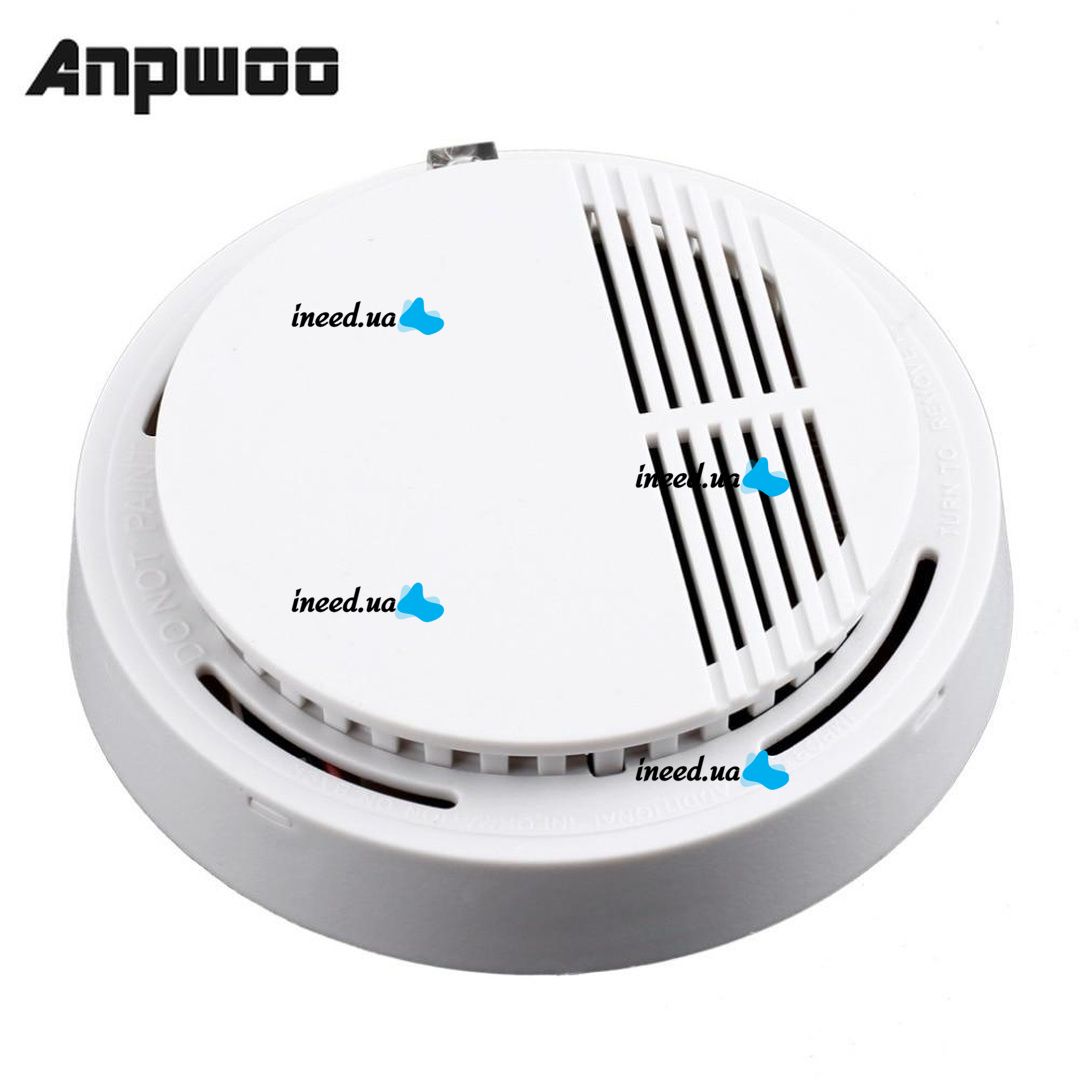

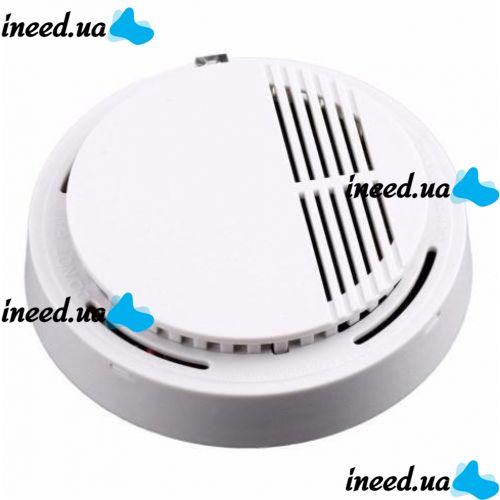

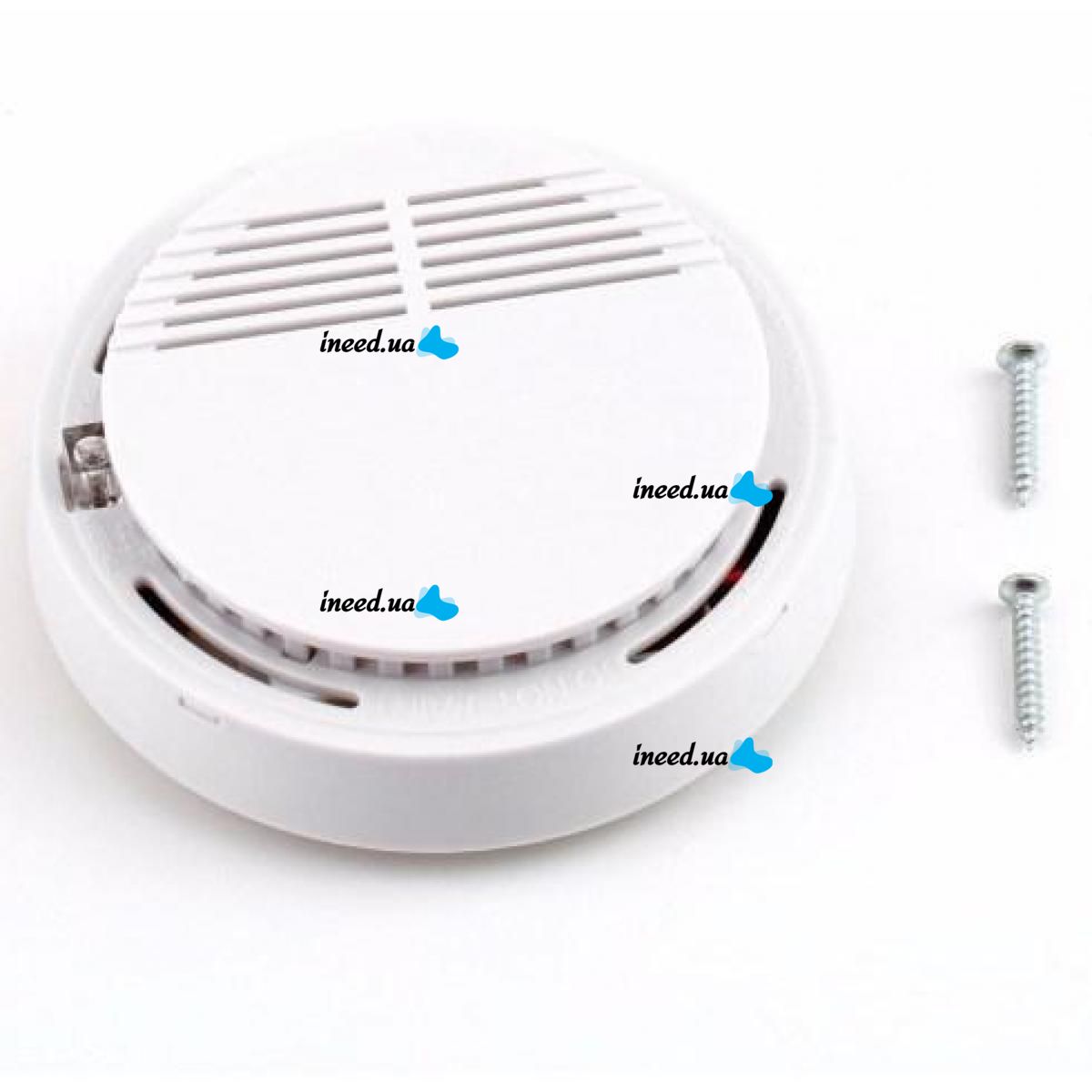

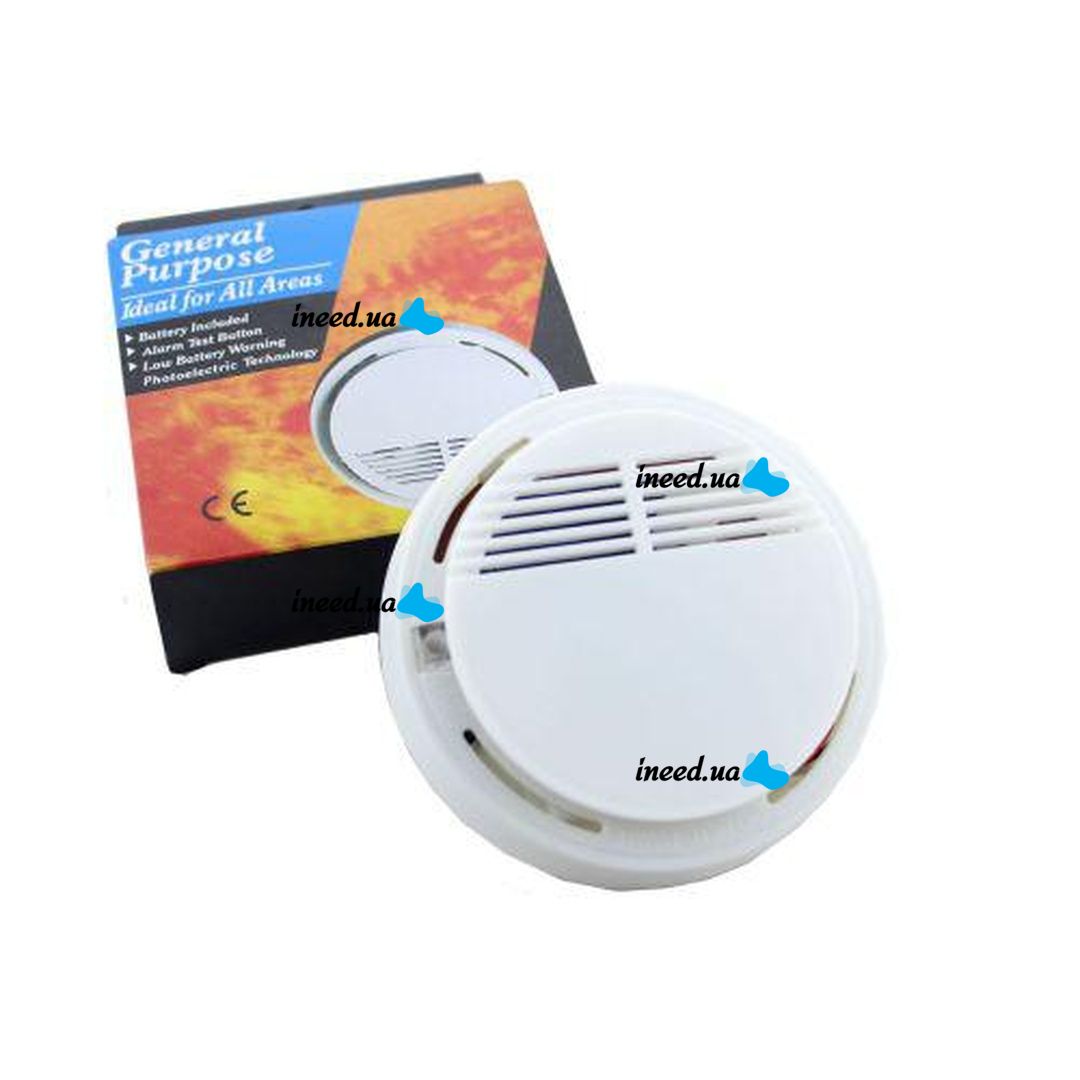

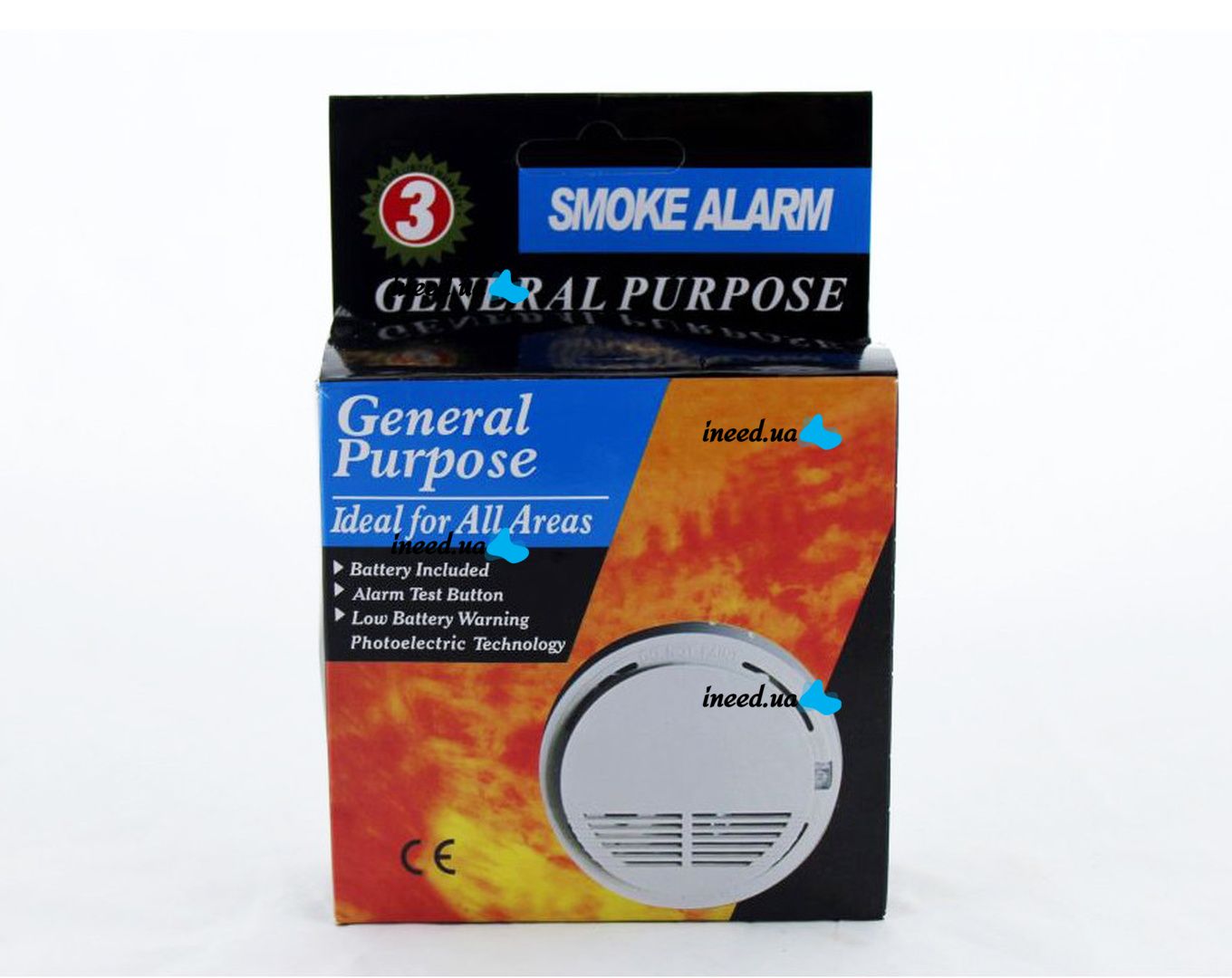

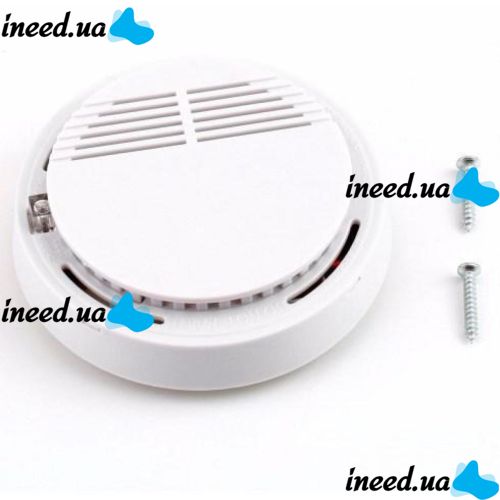

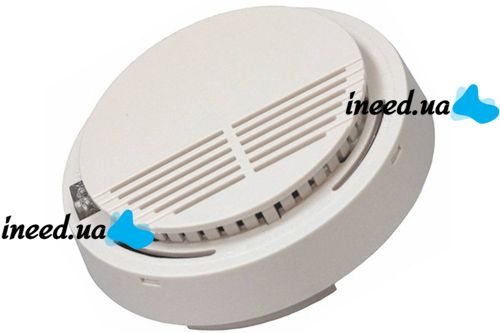

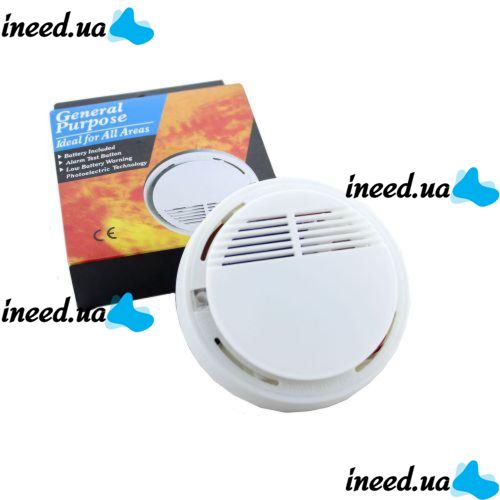

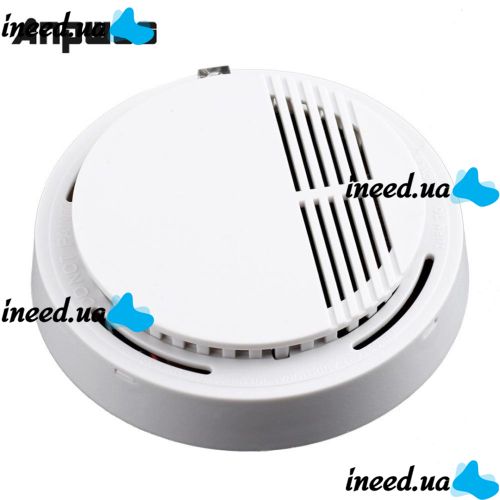

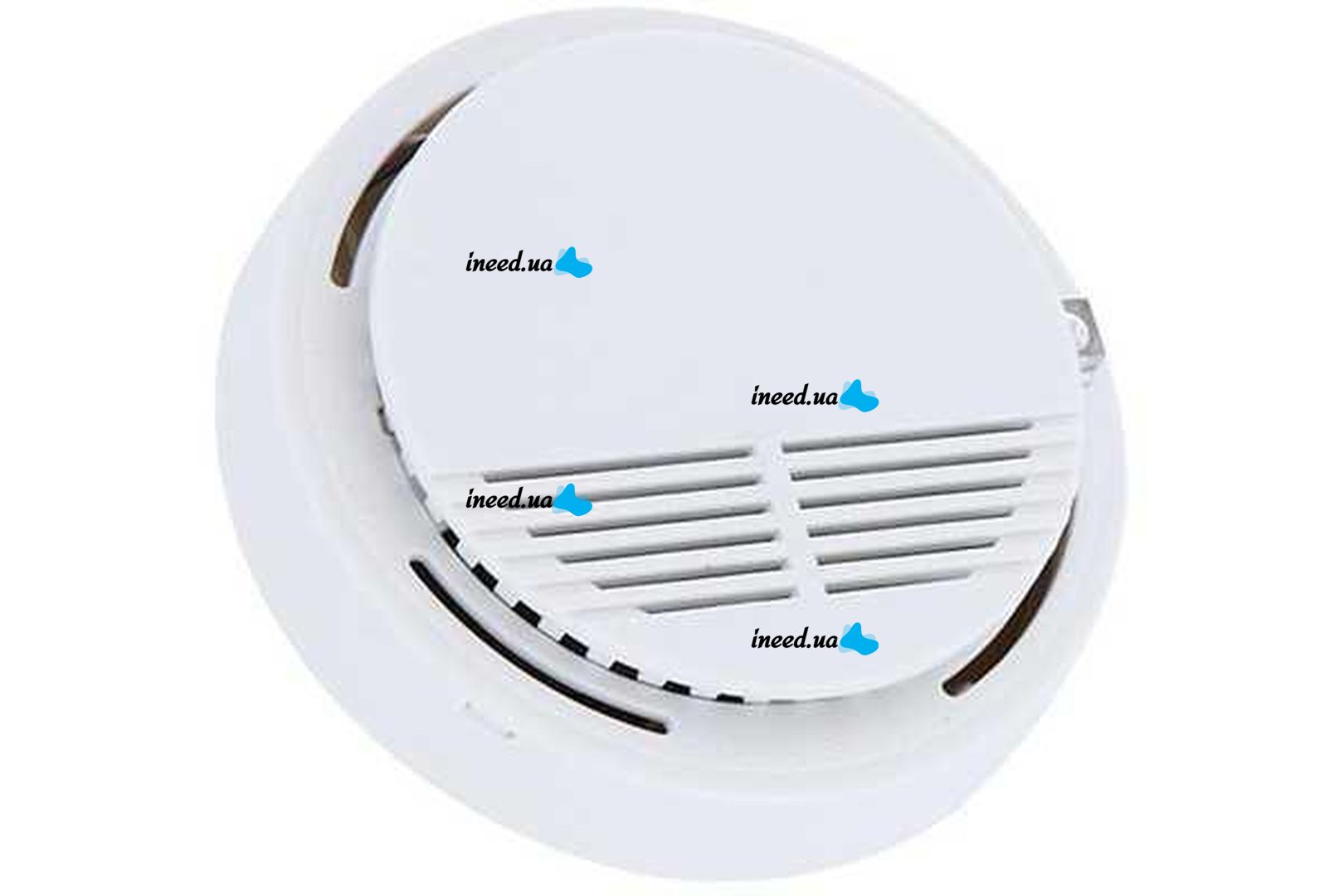

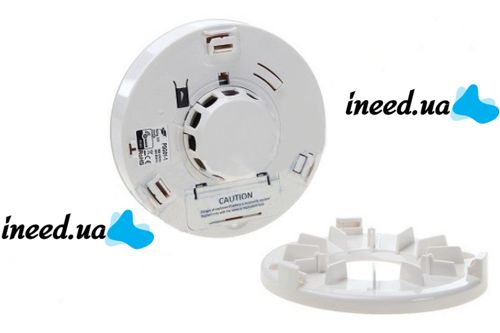

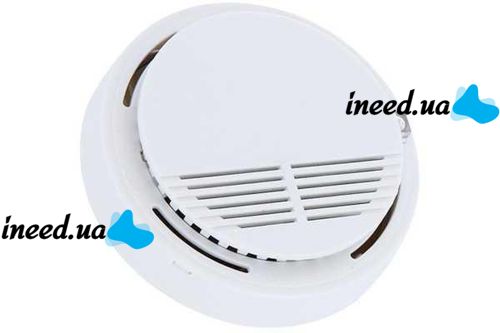

Smoke Detector for Home Alarm JYX SS168

Smoke Detector for Home Alarm JYX SS168

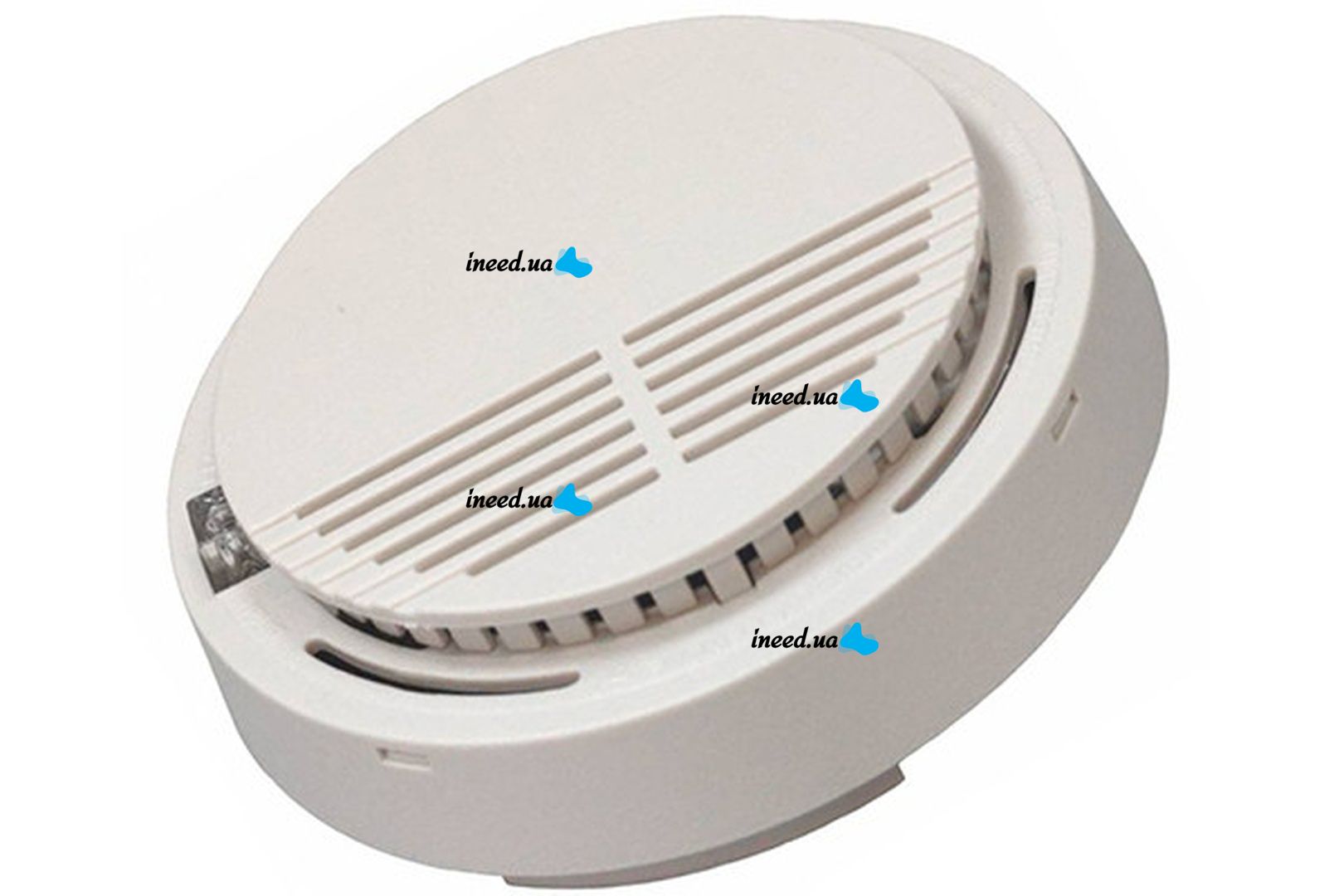

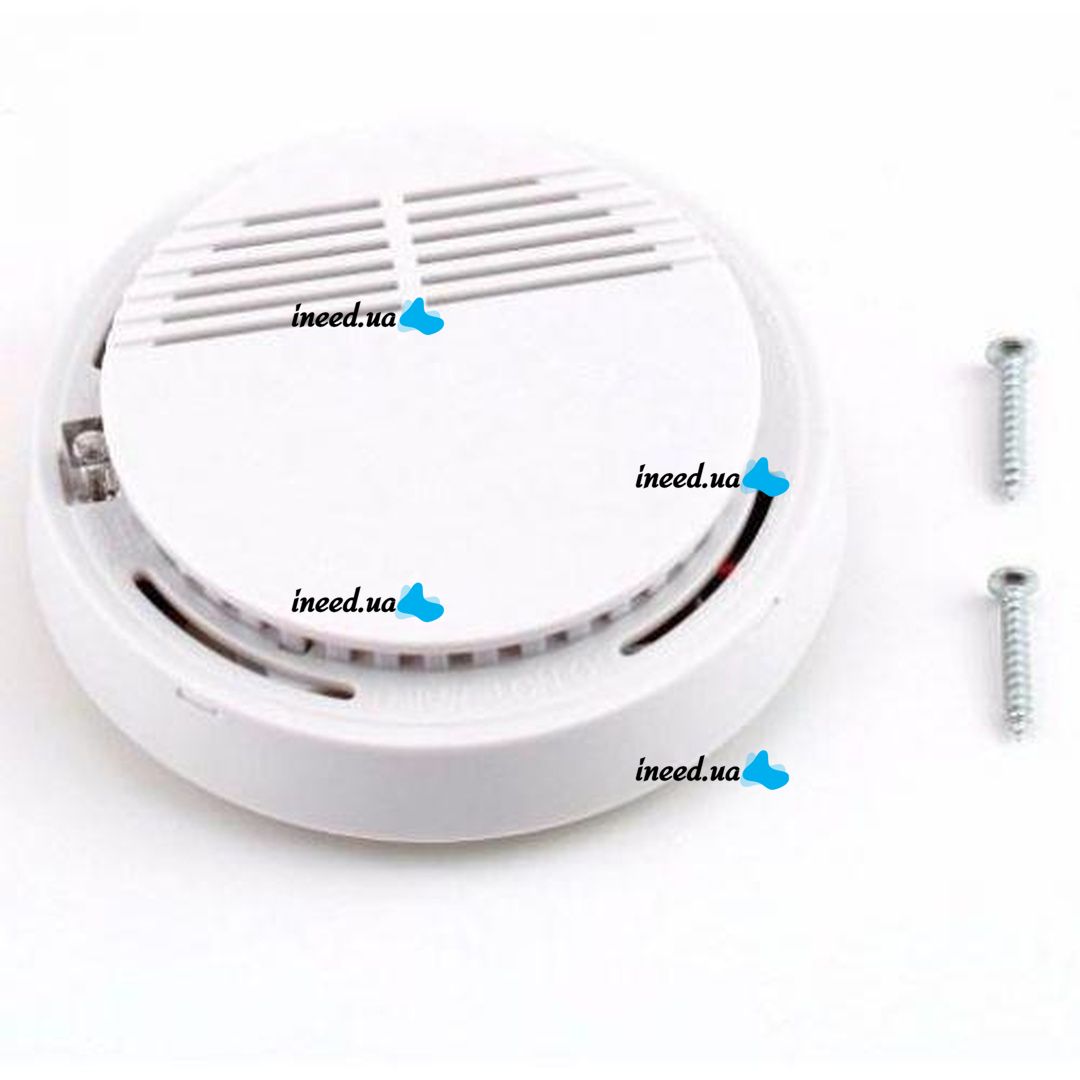

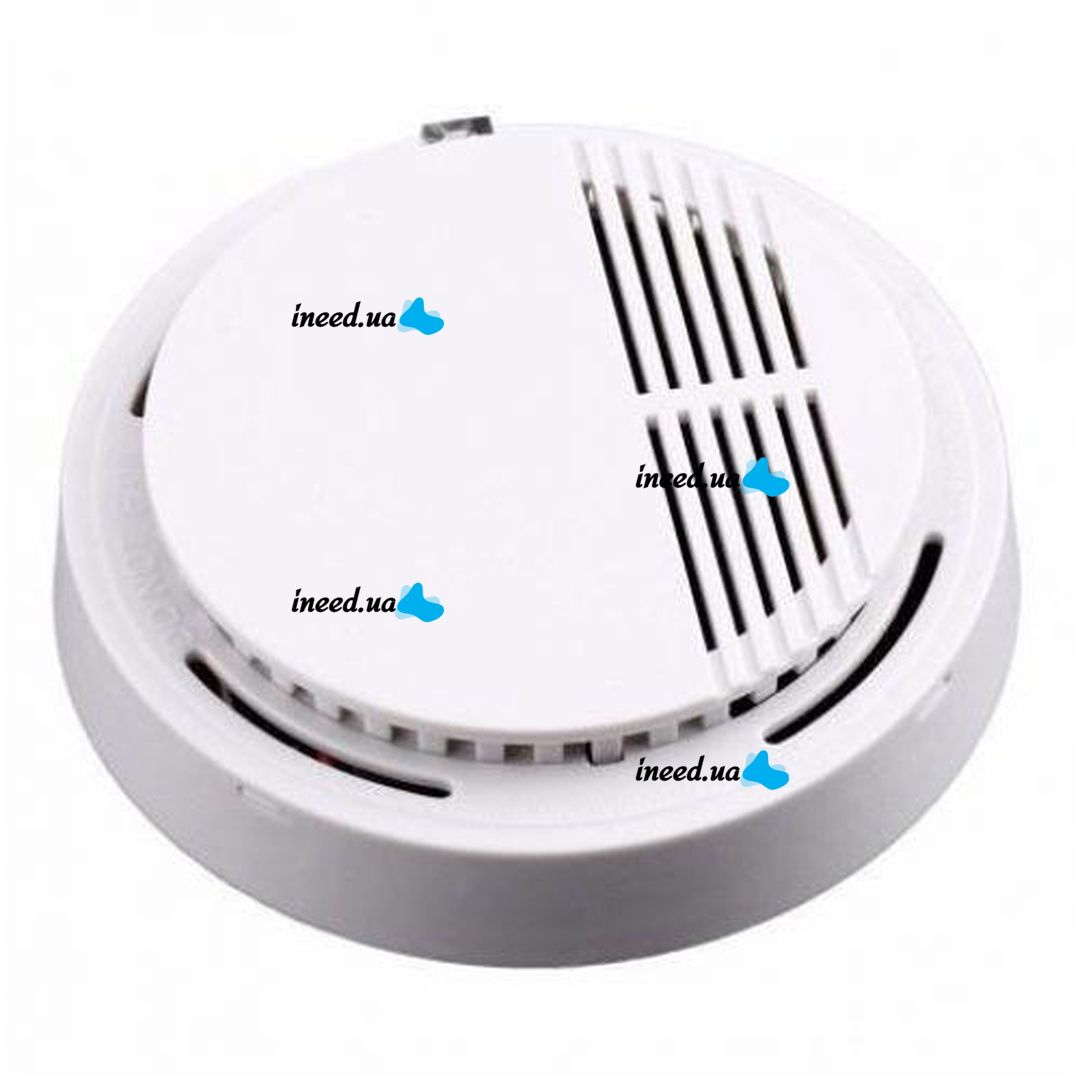

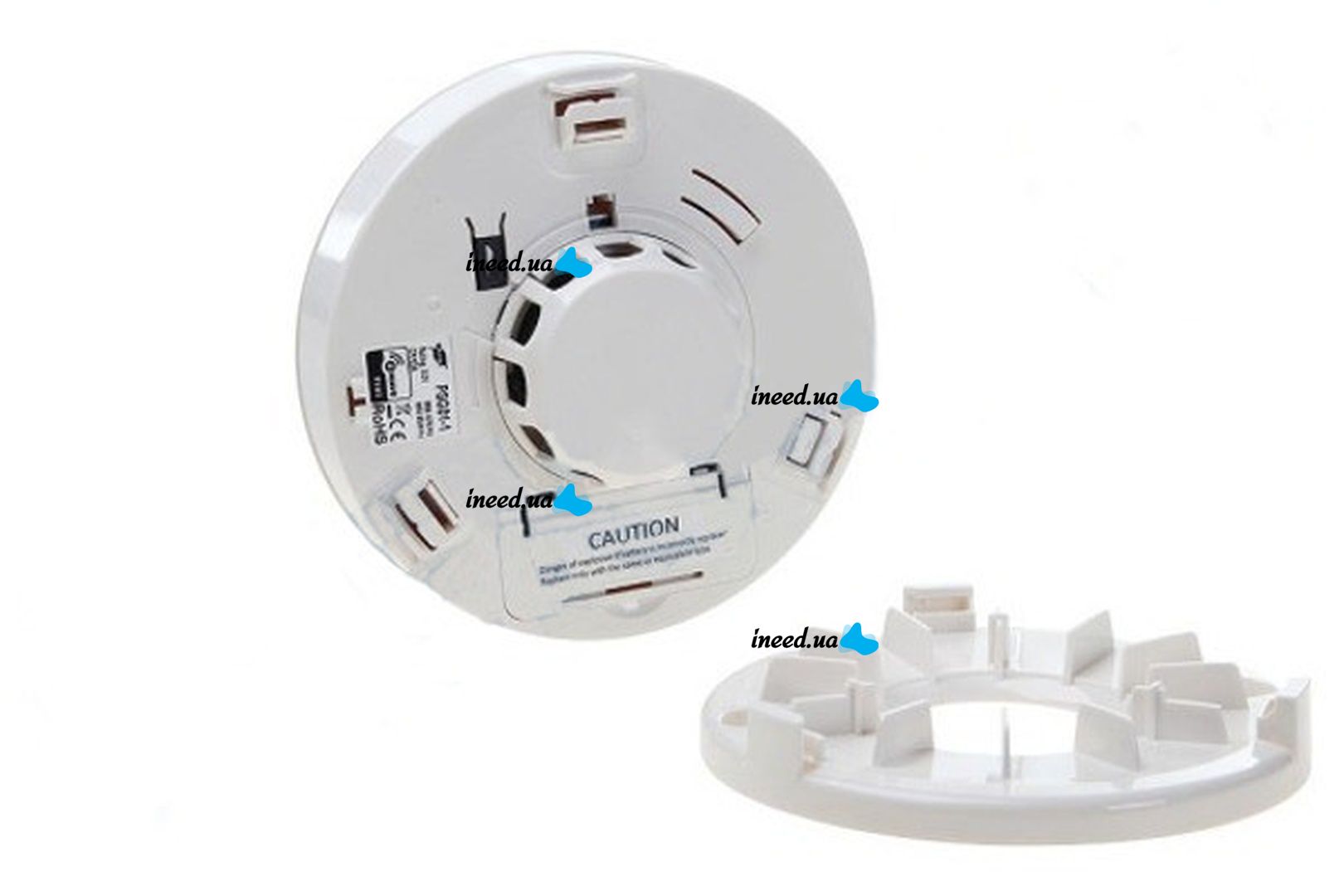

SS-168 Wireless Sensor (TS-168) designed to detect smoke in the room. The detector is triggered by smoke using an infrared emitter and a photodetector. The elements are mounted in a special smoke chamber. When smoke particles enter the camera, the photodetector detects distortion of the infrared beam. If there is a lot of smoke, the beam distortion becomes strong, the sensor sends a message via a radio channel (without wires) about a fire alarm to the central unit and the sound siren built into the sensor turns on.

Specifications:

• Sensor Type: Wireless

• Sensor Type: Photoelectric

• Covered area: 20 sq.m

• Built-in siren volume: 85 dB

• Maximum distance between sensors and the center: 100 meters

• Transmission frequency: 433MHz

• Sensor radio transmitter power: 10 MW

• Sensor radio signal modulation: ASK

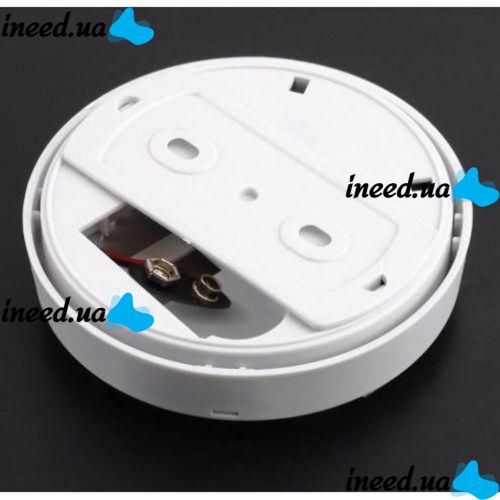

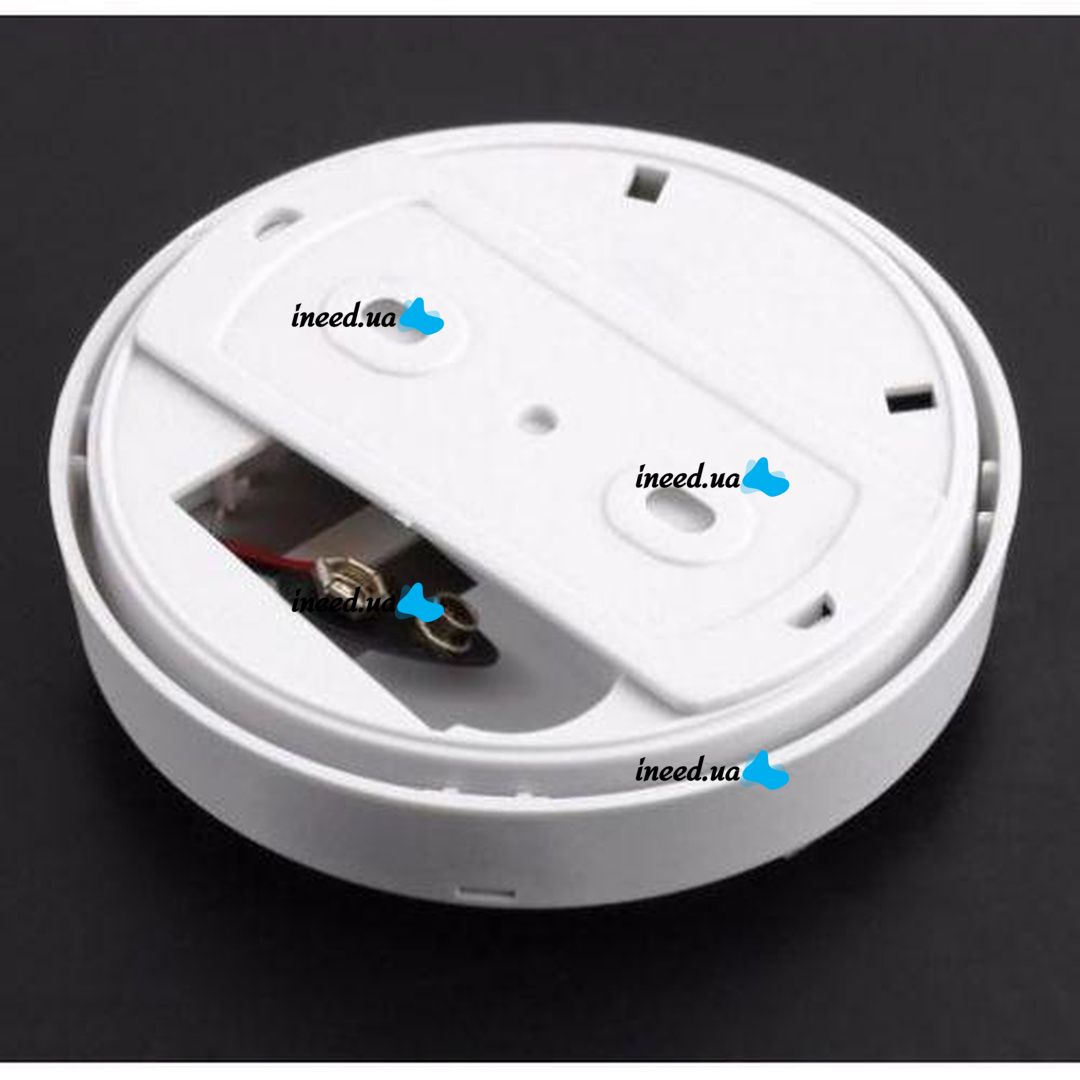

• Battery Type: PP3 battery (Crown)

• Sensor life from one battery: up to 1 year

• Operating voltage: 9V

• Idle/alarm current consumption: 5/36 mA

• Operating temperature range: -0°C – +40 °C

• Operating humidity:from 10 to 85 %

• Dimensions : 115 x 35 mm
